Shenzhen Tuomei Dental Technology provides three precision dental attachment restoration options: Ball Precision Attachment with RPD Metal Framework, Keyway Precision Attachment Metal Framework Partial Denture, and Bar Clip Precision Attachment Overdenture. Each uses a different connection structure and restoration configuration, with material and design options depending on the product.

We also manufacture dental impression trays, individual impression trays with wax rims, dental bite blocks, and PMMA temporary dental bridges for customized dental laboratory orders.


  • Dental Impression Tray

    Dental Impression Tray

    Dental Impression Tray is a must-have professional dental supply and essential core dental instrument widely used in stomatology clinics, dental laboratories, orthodontic institutions and dental...

    Add to Inquiry
  • PMMA Temporary Dental Bridge

    PMMA Temporary Dental Bridge

    PMMA Temporary Dental Bridge is a popular short term transitional tooth bridge widely used in dental clinics and dental labs. Made of medical grade PMMA resin, this acrylic temporary bridge serves...

    Add to Inquiry

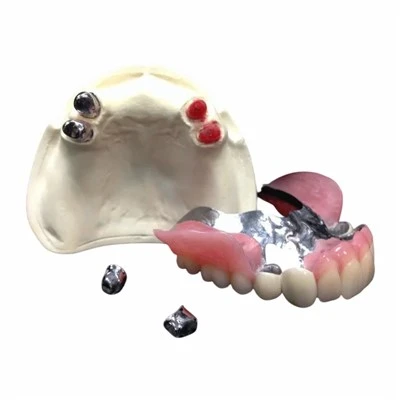

  • Ball Precision Attachment with RPD Metal Framework

    Ball Precision Attachment with RPD Metal Framework

    This aesthetic removable partial denture solution combines ball‑socket precision attachment system with milled RPD metal framework. It replaces unsightly traditional metal clasps, delivering...

    Add to Inquiry
  • Keyway Precision Attachment Metal Framework Partial Denture

    Keyway Precision Attachment Metal Framework Partial Denture

    Our custom Keyway Precision Attachment Metal Framework Partial Denture is a clasp-free combined fixed-removable restoration for partially edentulous patients. It adopts the key-keyway precision...

    Add to Inquiry

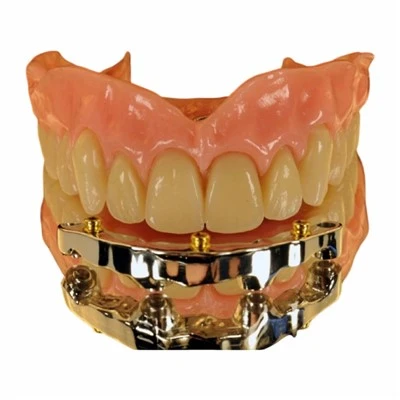

  • Bar Clip Precision Attachment Overdenture

    Bar Clip Precision Attachment Overdenture

    Our custom Bar Clip Precision Attachment Overdenture supports implant‑borne or tooth/residual‑root‑borne rehabilitation for edentulous patients. Fabricated by CAD/CAM digital milling, the...

    Add to Inquiry
  • Individual Impression Tray with Wax Rim

    Individual Impression Tray with Wax Rim

    The individual impression tray with wax rim is a custom dental tray handcrafted for complete denture impression. It is fabricated to match the patient’s unique alveolar ridge shape. The attached...

    Add to Inquiry

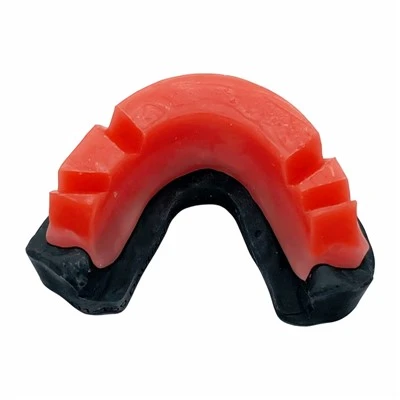

  • Dental Bite Block

    Dental Bite Block

    Handmade dental bite block, also known as dental mouth prop, is a custom oral support appliance hand-fabricated for individual patients. It holds the mouth open steadily during intraoral scanning,...

    Add to Inquiry


1. Precision Dental Attachment Types and Restoration Options

Our precision dental attachment products cover three restoration configurations:

Product Connection Structure Restoration Configuration
Ball Precision Attachment with RPD Metal Framework Ball-and-socket attachment Removable partial denture with milled metal framework, denture teeth, and denture base
Keyway Precision Attachment Metal Framework Partial Denture Key-and-keyway precision connection Metal framework partial denture
Bar Clip Precision Attachment Overdenture Milled bar with clip retention Overdenture with replaceable clips

The Ball attachment uses a ball-and-socket connection that allows rotational movement. The Keyway design provides a precision-fit connection between its components. The Bar Clip design uses a milled bar and replaceable clips within the overdenture.

2. Precision Attachment Selection and Restoration Compatibility

Each attachment type has different restoration conditions and design requirements.

Attachment Type Suitable Restoration Conditions Available Configuration
Ball Partial tooth loss; removable partial denture cases with aesthetic requirements Ball attachment with RPD metal framework
Keyway Kennedy Class I and Class II distal-extension cases, bridge abutment cases, and cases involving non-parallel prepared abutments Keyway precision attachment with metal framework
Bar Clip Full-arch edentulous overdenture cases supported by implants or natural teeth/roots Milled bar, replaceable clips, denture base, and artificial teeth

For Ball attachment restorations, the framework is available in Co-Cr or Titanium.

Keyway restorations use a cobalt-chrome alloy framework, a denture base, and artificial teeth.

Bar Clip restorations can be configured with different bar, clip, denture base, and artificial tooth materials.

3. Materials and Customization Options

We offer material and design options according to the attachment restoration type.

Product Material Options Customization Options
Ball Precision Attachment Co-Cr or Titanium framework Number and position of ball attachments, tooth shade, and gingival shade
Keyway Precision Attachment Cobalt-chrome alloy framework, denture base, acrylic artificial teeth Key/keyway component adjustment and replacement
Bar Clip Precision Attachment Titanium alloy, Co-Cr, or PEEK bar; Nylon or PEEK clips; high-impact acrylic resin denture base Bar and clip material selection, restoration design, and artificial tooth selection

For Bar Clip overdentures, artificial teeth are available in different product options.

For Keyway restorations, the key/keyway components can be remade or adjusted without remaking the entire metal framework.

4. Digital Workflow and Order Requirements

We accept digital files, physical models, and conventional dental impressions for customized restoration orders.

Digital File Formats

  • STL
  • PLY

Supported Digital Scanning Platforms

  • Shining 3D
  • Meditlink
  • 3Shape

Other Accepted Order Inputs

  • Physical models
  • Mounted stone models
  • Dental impressions

For Bar Clip overdenture orders, the production workflow depends on the submitted materials.

Digital File Workflow

STL file submission → CAD design of the bar, attachment paths, and occlusion → Design confirmation → CAD/CAM milling → Finishing → Clip installation → Tooth arrangement → Processing → Polishing → Quality inspection → Dispatch.

Physical Model Workflow

Physical model submission → Scanning → CAD/CAM processing → Finishing and subsequent restoration procedures.

Dental Impression Workflow

Dental impression submission → Stone model fabrication → Scanning → CAD/CAM processing → Subsequent restoration procedures.

5. Other Dental Laboratory Products

In addition to precision attachment restorations, we provide several other dental laboratory products.

Product Available Options or Customization
Dental Impression Tray Disposable PP plastic or reusable stainless steel
Individual Impression Tray with Wax Rim Customized upper or lower tray with wax rim
Dental Bite Block Customized dimensions, thickness, and overall shape
PMMA Temporary Dental Bridge Preformed or customized resin temporary bridge

Individual impression trays use a medical-grade acrylic resin tray body and dental baseplate wax rim.

6. Production and Delivery

Our published production schedules vary by product.

Product Published Production Time
Ball Precision Attachment with RPD Metal Framework 4–5 working days
Keyway Precision Attachment Metal Framework Partial Denture 3–5 working days after design confirmation
Bar Clip Precision Attachment Overdenture 3–5 working days after design confirmation
Separate Bar Component 2–3 working days
Individual Impression Tray with Wax Rim 1 day
Dental Bite Block 1–2 working days

For international shipments, we use DHL, UPS, and other available logistics services. Shipping arrangements and transit times depend on the destination and product.

7. Why Source from Tuomei

Shenzhen Tuomei Dental Technology has a team of 120 professional dental technicians and dedicated areas for production, polishing, quality inspection, and packaging.

Our manufacturing equipment includes:

  • 3D dental scanners
  • 3D printers
  • CNC milling machines
  • Automatic sintering furnaces
  • Vacuum forming machines
  • Precision cutting and polishing equipment
  • Inspection and testing instruments

We combine digital manufacturing processes with manual finishing and polishing. Quality control covers the production process from raw material inspection through finished product delivery.

We support both customized orders and bulk orders. Our services include pre-order technical consultation, design and sample confirmation, order follow-up, technical support, and after-sales assistance.

8. Request a Quote for Precision Dental Attachments

Send us your required attachment type, restoration design, material preferences, and available case information.

You can start with an STL or PLY file, a physical model, a dental impression, or sample photos. Please also include your estimated order quantity.

Our team will review the submitted information and provide a corresponding product proposal and quotation.

We are one of the most professional dental restorations manufacturers and suppliers in China, featured by quality products and low price. Please rest assured to buy discount dental restorations made in China here from our factory. Welcome to view our website for more information.
