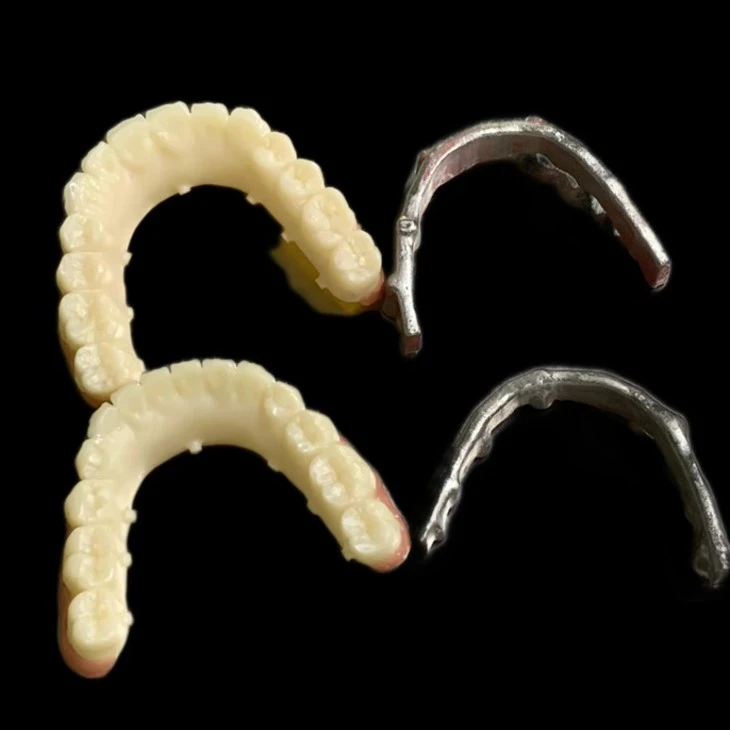

Dental Full Arch Zirconia Bridge With Titanium Bar



Dental Full Arch Zirconia Bridge with Titanium Bar is an implant-supported fixed full-arch dental restoration. A custom-milled titanium bar is screwed onto dental implants as the rigid substructure framework, then a full-contour zirconia bridge is bonded to the titanium bar. This hybrid restoration combines the high strength of titanium and the natural esthetics of zirconia to replace a complete upper or lower arch of missing teeth.







Superior structural stability: The titanium bar provides a rigid, distortion-free base, effectively dispersing biting force across all implants, greatly reducing fracture risk of the zirconia superstructure.

Excellent biocompatibility: Both titanium and zirconia are bio-inert materials, low irritation to gum tissue, minimal plaque accumulation and no allergic reaction.

Natural aesthetics: Zirconia mimics the translucency and shade of natural teeth, delivering lifelike tooth appearance, far better than metal-acrylic full arch prosthesis.

Long-term durability: Resists wear, stain and discoloration; suitable for heavy occlusal force and bruxism patients when properly designed.

Fixed non-removable solution: Patients do not need to take the prosthesis out, comfortable chewing and speaking experience compared with removable dentures.

Good marginal fit: Digital CAD/CAM milling ensures precise fit between titanium bar, implants and zirconia bridge, protecting peri-implant soft tissue.







Indications (Suitable Cases)

Complete edentulous upper or lower jaw, or nearly full arch missing teeth.

Sufficient bone volume to place dental implants for full arch rehabilitation.

Patients seeking fixed permanent teeth restoration instead of removable dentures.

Patients with heavy bite force or night grinding (bruxism).

Patients demanding both long-term strength and natural tooth aesthetics.

Cases where acrylic full arch bridge has frequent chipping issue.

Contraindications (Not Suitable Cases)

Severe systemic disease that cannot tolerate implant surgery.

Insufficient jaw bone quantity/quality without feasible bone graft option.

Uncontrolled periodontal disease, active oral infection.

Extreme parafunctional habits that cannot be managed (uncontrolled severe bruxism without occlusal guard).

Poor oral hygiene compliance and unwillingness to maintain regular dental follow-up.

Patients expecting ultra-thin restoration with very limited vertical occlusal space.





Q1: What is the difference between full arch zirconia bridge with titanium bar and all-zirconia full arch bridge?

A: The titanium bar acts as a metal subframe. It shares occlusal load and protects zirconia from cracking under heavy bite. All-zirconia bridge is monolithic zirconia without titanium framework, more esthetic but higher fracture risk for patients with strong bite force.



Q2: Is this restoration removable?

A: No. It is a fixed implant-supported prosthesis. Only dentists can remove it during maintenance check-ups; patients cannot take it out at home.



Q3: How long does a full arch zirconia bridge with titanium bar last?

A: With good oral hygiene, regular dental checkups and proper occlusal management, the restoration can serve for many years. Implant and prosthesis longevity depends on bone health and daily oral care.



Q4: Does the titanium bar cause gum darkening?

A: The titanium bar is placed subgingivally or under the zirconia superstructure. Zirconia covers the framework, so there will be no grey metal shadow showing through gums like traditional PFM crowns.



Q5: Can bruxism patients get this restoration?

A: Yes, it is one recommended option for bruxism patients. The titanium bar reinforces the whole bridge. We still suggest patients wear a night occlusal guard to reduce long-term occlusal impact.



Q6: What material is better, acrylic or zirconia on titanium bar?

A: Acrylic on titanium bar is lower cost and easy to repair, but acrylic is prone to chipping, staining and wear. Zirconia version has better stain resistance, natural appearance and higher wear resistance for long-term use.
